MODEL: S-90
OPEN LENGTH: 7.65 inches
BLADE LENGTH: 2.95 inches
CLOSED LENGTH: 4.70 inches
BLADE DEPTH: 1.72 inches
BLADE THICKNESS: .180 - .190 inches
BLADE MATERIALS: Bohler M390
HANDLE FRAME: 6AL-4V Ti, CF or G10
HANDLE FRAME LOCK SIDE: 6AL-4V Ti
SPACERS: This model comes with a solid back-spacer made of hardened 440C.
S-90 NOTE: The current S-90 build comes with a 25% thinner frame, improved edge geometry, smoother bearing system, improved clip design, new blade choices, new frame choices and ceramic coating options.
GENERAL NOTE: Each model is subject to evolution. Specifications may be changed, modified, removed and added at any time.

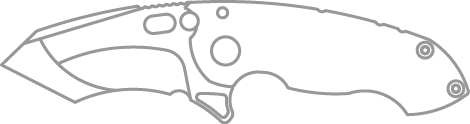

S-90 Recurve Blade with a Multi Grind

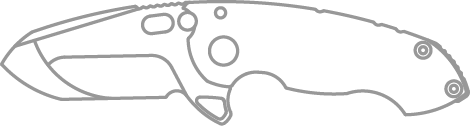

S-90 Non-Recurve Blade with a Multi Grind

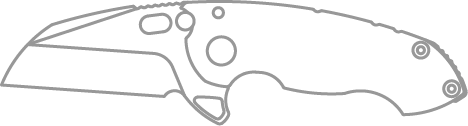

S-90 Wharncliffe Blade with a Hollow Grind

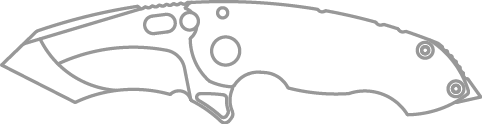

S-90 Hawk Blade with a Hollow Grind



S-90 Frame Standard Plain
S-90 Frame with Dot Fuller Pattern
S-90 Frame with Dot Fin Pattern
S-90 Frame with Segmented Hatched Texturing

S-90 Frame with Bolstered Inlay


FRAME FINISHES
COLOR NAME DESCRIPTION
Grit Blasted Rough Grit Blast
Light Tumbled Plain Tumbled Finish
Tumbled or Plain Bronze Ano Bronze Anodized Finish
Tumbled or Plain Blue Ano Blue Anodized Finish
Satin Satin with Light Tumbled Edges







BLADE FINISHES
COLOR NAME DESCRIPTION
Grit Blasted Rough Grit Blast
Light Tumbled Plain Tumbled Finish
Satin With Light Tumbled Flats Satin Bevels With Light Tumbled Flats
Satin With Tumbled Black Ceramic Flats Satin Bevels With Tumbled Black Ceramic Flats







CERAMIC COATINGS AVAILABLE FOR BOTH FRAME & BLADE FINISHES
COLOR NAME DESCRIPTION
Tumbled Black Flat Black Tumbled
Cobalt Dark Grey Metallic
Tungsten Medium Grey Metallic
Stainless Light Grey Metallic
Tumbled OD Green Olive Drab Green Tumbled
Burnt Bronze Bronze Metallic
